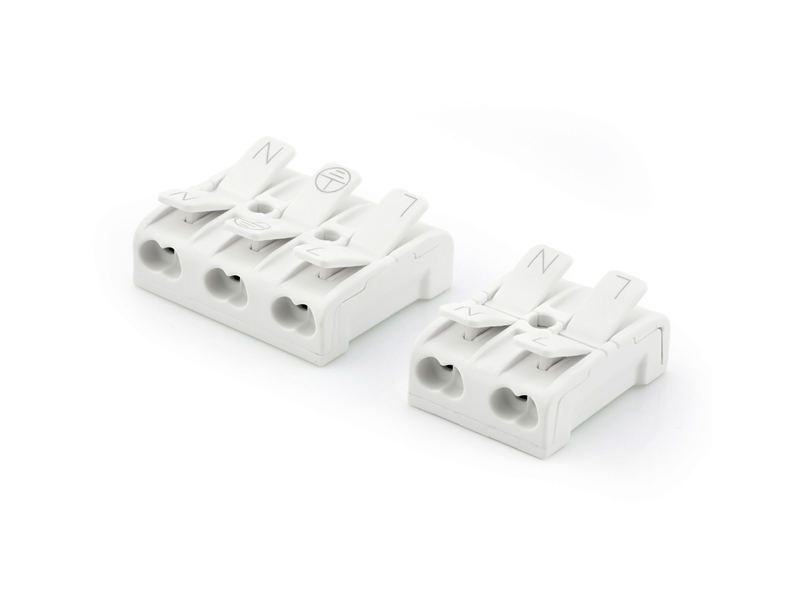

GH5903 Mini GH0923 2-5 pin, listwa zaciskowa oświetlenia LED, złącze Strip, UL VDE, złącze wtykowe

Opis produktu: GH0923 2-5 pin, listwa zaciskowa oświetlenia LED, złącze taśmy 923, UL VDE, złącze wtykowe Szczegóły nieruchomości: 1. Materiały: 1.1 Obudowa: LCP UL94 V-0 1.2 Zaciski: stop miedzi 2. Poszycie: Terminale: Matte-in 3. Wydajność elektryczna: 3.1 Napięcie znamionowe: 300 V (AC/DC) 3.2 Prąd Znamionowy: 16A 3.3 Rezystancja izolacji: 100MΩ min 3.4 Wytrzymałe napięcie dielektryczne: 500V AC R.M.S/1m 4. Charakterystyka środowiskowa 4.1 Zakres temperatur przechowywania: -10℃~+50℃ Pół roku 4.2 Zakres temperatur pracy: -40℃~+105℃ 5. Zgodny z RoHS Cechy i zalety: Moduł zaciskowy do zasilania służy do podłączenia lamp i innych urządzeń. Nadają się do oświetlenia, sprzętu AGD itp. i mogą łączyć przewody jednodrutowe, wielodrutowe i cienkie wielodrutowe od 0,75 do 2,5 mm2. Dostępne są różne łatki biegunowe i zaciski Różne typy dna: T/J/płaskie dno. Podanie: oświetlenie, sprzęt AGD itp., Certyfikat: Kontrola jakości ma najwyższy priorytet w GHGM. System zarządzania: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Kontrola jakości produkcji: UL, VDE, REACH, RoHS, IEC, CQC Wynalazek i patenty: USA, Niemcy, Japonia, Chiny Pakowanie i wysyłka: Wybieramy najlepszy i bezpieczny materiał opakowaniowy, aby mieć pewność, że Twoje zamówienia nie zostaną uszkodzone podczas dostawy. Różne metody pakowania są poddawane różnym produktom, takim jak Tape&real, PE Bag, Tube, Tray. Te warunki handlowe są dopuszczalne, EXW, FOB, CFR, CIF itp.

Opis produktu: GH0702, Skrzynka przyłączeniowa, współpracująca z GH0923 2-5 pin Szczegóły nieruchomości: 1.Materiały: 1.1 Obudowa: LCP UL94 V-0 2.Charakterystyka środowiskowa 2.1 Zakres temperatur przechowywania: -10℃~ 50℃ Pół roku 2.2 Zakres temperatur pracy: -40℃~ 105℃ 3.Zgodny z RoHS Cechy i zalety: Pasuje do różnych typów dna GH0923: T/J/płaskie dno. Podanie: oświetlenie, sprzęt AGD itp., Certyfikat: Kontrola jakości ma najwyższy priorytet w GHGM. System zarządzania: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Kontrola jakości produkcji: UL, VDE, REACH, RoHS, IEC, CQC Wynalazek i patenty: USA, Niemcy, Japonia, Chiny Pakowanie i wysyłka: Wybieramy najlepszy i bezpieczny materiał opakowaniowy, aby mieć pewność, że Twoje zamówienia nie zostaną uszkodzone podczas dostawy. Różne metody pakowania są poddawane różnym produktom, takim jak Tape&real, PE Bag, Tube, Tray. Te warunki handlowe są dopuszczalne, EXW, FOB, CFR, CIF itp.

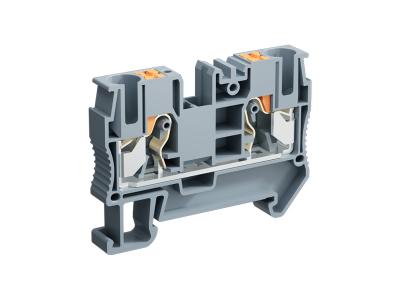

Product Description:GHPT6 Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：57.7*42.2*8.2mm2.   Wiring capacity：0.5-10mm²(solid wire) / 0.5-6mm²(Stranded wire), 20-8AWG3.   Voltage/Current：IEC: 800V/32A, UL:600V/30A4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH5804 Pin spacing 5.0 mm,  PCB terminal block, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit, PCB terminal block, Push-in CAGE CLAMP®Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 12A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Available in 2-24 pole configurationsCompact terminal strips without push-buttonsPush-in terminations of solid and ferruled conductorsTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides easy, space-saving wiringCustom color combinationsTerminal strips also available with spacers upon requestApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT025-TW Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：60.5*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：IEC: 800V/24A, UL:600V/20A4.   Wiring quantity：35.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

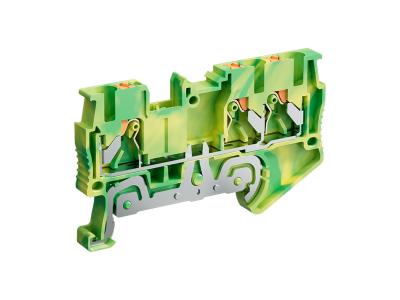

Product Description:GHPT6-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：57.7*42.2*8.2mm2.   Wiring capacity：0.5-10mm²(solid wire) / 0.5-6mm²(Stranded wire), 20-8AWG3.   Voltage/Current：4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT10 Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：67.7*49.5*10.2mm2.   Wiring capacity：0.5-16mm²(solid wire) / 0.5-10mm²(Stranded wire), 20-6AWG3.   Voltage/Current：IEC: 1000V/57A, UL:600V/60A4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0129 20A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 20A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 20A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
